Product Overview
Product Description:

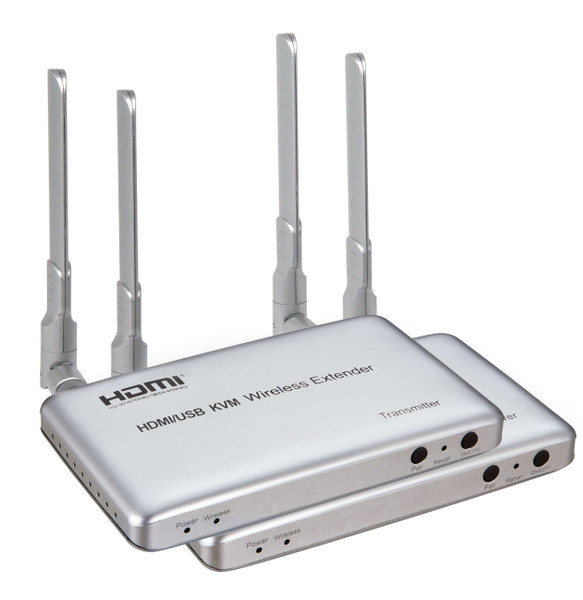

This 200m HDMI/KVM Wireless extender uses 2.4G and 5G technology to enable high-speed, high performance wireless communication among consumer electronics, computer and mobile devices.
It combines high bandwidth capacity with strong error-correction, to deliver uncompressed HD video.
It can go through the wall, and transmit the signal up to 200m in the open area.
Features:
- Support HDMI 1.4a
- Support HDCP1.3
- Support standard IEEE802.11a/b/g/n
- Support resolution up to 1920×1080/60Hz
- Support the highest rate 1.485G and TMDS clock up to 148.5Mhz
- Support IR control
- Support KVM function
- Work in 5G frequency band, it is not easy to be interfered by wireless signals
- The max transmitting distance can be 200m (In the open area)
- 5V/2A power adaptor
Specification:
- HDMI Version: up to HDMI 1.4a
- HDMI Resolution: up to 1920×1080/60Hz
- Support audio format: Stereo audio
- Max bandwidth: 148.5MHz
- Max baud rate: 1.485Gbps
- Input cable distance: (1080p resolution) ≤ 8m AWG26 HDMI standard cable
- Output cable distance: (1080p resolution) ≤ 8m AWG26 HDMI standard cable
- Transmitter Max working current:1.2 A
- Receiver Max working current:800mA
- Power adapter: Input AC (50Hz, 60Hz) 100V-240V; Output: DC5V/2A
- Operating Temperature range: (-15° to +55°)
