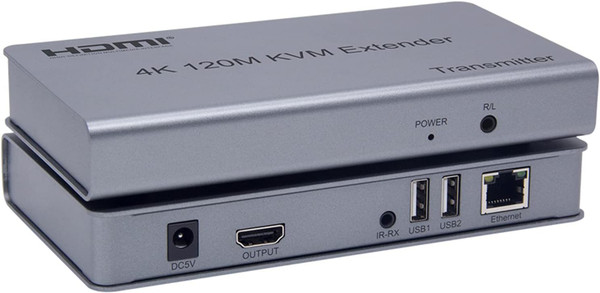

Product Overview
The Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable to transmit high definition signal up to 120 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.
Features:
* Support HDMI 1.4/HDCP1.4;
* Support local loop-out ;
* Support 120m long distance transmission
CAT 5E/6 Cableˆ120M
* Low power consumption, low temperature and high safety
* Both the TX and RX support 3.5MM left and right audio output
* Support IR control
* Support USB mouse and keyboard extension
Specifications:
Length of CAT5e/CAT6 cable between Rx and TX …………….......................... 120 meters
HDMI Input …..…………………...……….................... 4k/1080p/720p/576p/576i/480p/480i
HDMI Output …..…………….….................................. 4k/1080p/720p/576p/576i/480p/480i
Max bandwidth ………………………………………………………………………….. 340MHz
Max baud rate ……………….…….………………….………….…………………... 3x3.4Gbps
Input video signal ………….…………………………………………….…...... 0.5~1.5Volts p-p
Output DDC signal …………………………………………………................. 5Volts p-p (TTL)
Input HDMI cable distance ………….…………............ ≤10m AWG26 HDMI standard cable
Output HDMI cable distance ....................................... ≤10m AWG26 HDMI standard cable
TX Max working current ………………………………………...………….……………. 350mA
RX Max working current …………………………………………...…………………….. 200mA
Power adapter format ………...…... Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range ……..…………….………………………....…… (-15 to +55℃)
Operating Humidity range ………………………….….…… 5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….…………….…...… 107x105x27.3 (mm)
TX Weight …..……………………………………………..………………………........…… 499g
RX Weight .................................................................................................................... 494g
