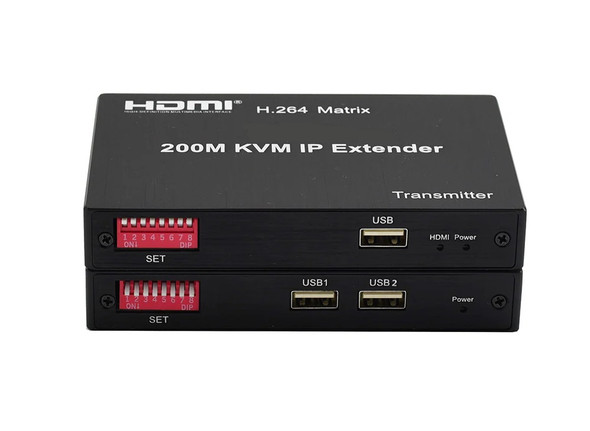

1080P HDMI 300 meter IP extender KVM Matrix (1Tx+1Rx)

300M HDMI IP Extender is based on TCP/IP standard. It transmits your HD display with the high resolution up to 300M away from your DVD or computer source by using one CAT5e/6 cable. At the same time, it's convenient to transmit HDMI audio and video source by point-to-point mode, point-to-multipoint, multipoint-to-multipoint mode and cascade connection mode.

• 300M Extender: 300M long distance transmission, supports one-to-one, one-to-many, many-to-many and cascade transmission.
• MJPEG decoding: stable performance, standard 802.3 Ethernet protocol. HD transmission 1920 * 1080 / 60Hz resolution image output more delicate colour, picture quality lifelike.
• Multi-system compatibility: compatible with windows series, Mac OS, Linux and other systems without the need to install drivers plug and play.
• Scene application: suitable for home sharing, TV sales, advertising display, multimedia teaching and other scenes.
• Safety protection and high efficiency: anti-static technology to prevent damage to electronic components caused by static electricity. Anti-surge technology to enhance product stability and prevent surge impact. 1080P/60Hz, enjoy HD visual experience of the delicate world. Pure hardware devices, multiple splicing modes, plug and play.
• KVM IP Extender with USB Port , RX can connect mouse and keyboard, and with IR Cable

Features :
Support HDCP1.4
Decoding Mode MJPEG
Support point-to-point mode, point-to-multipoint mode, multipoint-to-multipoint mode and cascade connection mode;
802.3 Ethernet standard;
The design of pure hardware, plug and play, no need for additional software.
CAT-5e/6 follow the standard of IEEE-568B

Specifications:
Resolutions :480P/720P/1080P
Audio: Sample rate:32kHz,44.1kHz and 48kHz
Power adapter format: Input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
The max working current: TX 450mA, RX 400mA
Size(L-W-H):90*91*19mm
Weight:120g x 2
Qualified cat5e/6 cables are needed
Please uses qualified cat5e/6 cables follow the standard of IEEE-568B to pair the TX and RX. A qualified network cable shall be of copper conductor.
The transmission distance is subjects to that of the cables connected.

Package Content For KVM IP Extender :
1 x 300M KVM IP Transmitter
1 x 300M KVM IP Receiver
2 x IR cable
2 x 5V Power supply
1 x USB cable male to male
1 x User Manual
